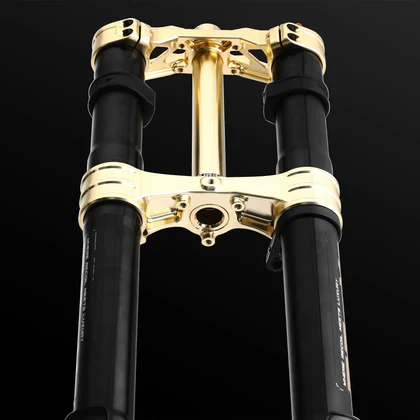

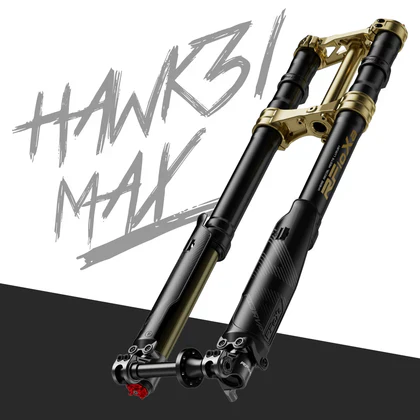

RFloXa Hawk 31 Max Front Fork 228mm Travel for Electric Dirt Bikes
RFloXa Hawk 31 Max Front Fork 228mm Travel | Wide Clamp Suspension for Electric Dirt Bikes
The RFloXa Hawk 31 Max is a serious upgrade for riders looking to maximize front-end stability, suspension adjustability, and downhill performance. With 228mm of plush travel, a wide 162mm triple clamp, and a CNC-machined design, this fork is purpose-built for electric dirt bikes and downhill builds that demand top-tier control and customization.
Whether you’re flying through the woods, hitting jumps, or carving corners, the Hawk 31 Max delivers performance that rivals premium motocross forks — without the premium price tag.
🛠 Key Features:
- 228mm of travel for aggressive off-road use
- 37mm stanchion tubes with 800mm center fork length
- 162mm clamp center distance – wider than most stock forks for increased tire clearance and stability
- 74mm caliper mount spacing – compatible with 203mm & 220mm disc brakes (adapter required)
- AL6061-T6 & AL7075-T6 forged aluminum body for strength and lightweight performance
- Inverted oil-spring damping system with asymmetrical leg function
Multi-stage damping control:
- High-speed compression
- Low-speed compression
- Rebound damping
- Spring preload
- Advanced bottom-out support via oil pressure system
- Dual-valve internal damping for stable, responsive feedback
- Available in black or gold triple clamp finishes
🔧 MAX Widened Triple Clamp Kit Includes:
- Upper and lower CNC triple clamps
- Matching steering stem
- Raised flange
- Widened front axle & bushings
- All mounting hardware included
- Available in Black, Red, Blue, Purple, Gun Gold
⚖️ Spring Rates:
- 45 lb spring – Ideal for riders ≤ 220 lbs (≤ 100kg)
- 55 lb spring – Ideal for riders 220–285 lbs (100–130kg)
✅ Fitment Compatibility:
- Surron LBX / LBS / L1E
- Talaria Sting MX3 / MX4 / XXX
- Segway X160 / X260
- E-Ride Pro S / SS 2.0 / SS 3.0 / SR
- 79-Bike Falcon M
- Rerode R1
- Altis Sigma
- RAWRR Mantis X / Standard
Supports both 19” and 21” front wheel configurations with increased clearance from the widened clamp spacing.
⚠️ Important Notes:
Currently not plug-and-play with larger brake calipers found on:
- Altis Sigma
- SRPNT Moto
- E-Ride Pro SS 3.0
- E-Ride Pro SR
These bikes require a brake adapter that is not yet available – but it’s in development now! If you’re running Volar Sport Racing calipers, REV Rides can special order a front adapter for you. Just reach out and we’ll get you squared away.
💡 Why Choose the Hawk 31 Max?
- More tire clearance & stability thanks to the 16mm-wider clamp spacing
- More tuning options with multi-stage damping and spring preload control
- More strength with forged AL6061 & AL7075 construction
- More bottom-out protection for big landings and technical terrain
- More confidence in every ride
Original: $999.99
-70%$999.99
$300.00More Images
RFloXa Hawk 31 Max Front Fork 228mm Travel for Electric Dirt Bikes
RFloXa Hawk 31 Max Front Fork 228mm Travel | Wide Clamp Suspension for Electric Dirt Bikes
The RFloXa Hawk 31 Max is a serious upgrade for riders looking to maximize front-end stability, suspension adjustability, and downhill performance. With 228mm of plush travel, a wide 162mm triple clamp, and a CNC-machined design, this fork is purpose-built for electric dirt bikes and downhill builds that demand top-tier control and customization.
Whether you’re flying through the woods, hitting jumps, or carving corners, the Hawk 31 Max delivers performance that rivals premium motocross forks — without the premium price tag.
🛠 Key Features:
- 228mm of travel for aggressive off-road use
- 37mm stanchion tubes with 800mm center fork length
- 162mm clamp center distance – wider than most stock forks for increased tire clearance and stability
- 74mm caliper mount spacing – compatible with 203mm & 220mm disc brakes (adapter required)
- AL6061-T6 & AL7075-T6 forged aluminum body for strength and lightweight performance
- Inverted oil-spring damping system with asymmetrical leg function
Multi-stage damping control:
- High-speed compression
- Low-speed compression
- Rebound damping
- Spring preload
- Advanced bottom-out support via oil pressure system
- Dual-valve internal damping for stable, responsive feedback
- Available in black or gold triple clamp finishes
🔧 MAX Widened Triple Clamp Kit Includes:
- Upper and lower CNC triple clamps
- Matching steering stem
- Raised flange
- Widened front axle & bushings
- All mounting hardware included
- Available in Black, Red, Blue, Purple, Gun Gold
⚖️ Spring Rates:
- 45 lb spring – Ideal for riders ≤ 220 lbs (≤ 100kg)
- 55 lb spring – Ideal for riders 220–285 lbs (100–130kg)
✅ Fitment Compatibility:
- Surron LBX / LBS / L1E
- Talaria Sting MX3 / MX4 / XXX
- Segway X160 / X260
- E-Ride Pro S / SS 2.0 / SS 3.0 / SR
- 79-Bike Falcon M
- Rerode R1
- Altis Sigma
- RAWRR Mantis X / Standard
Supports both 19” and 21” front wheel configurations with increased clearance from the widened clamp spacing.
⚠️ Important Notes:
Currently not plug-and-play with larger brake calipers found on:
- Altis Sigma
- SRPNT Moto
- E-Ride Pro SS 3.0
- E-Ride Pro SR
These bikes require a brake adapter that is not yet available – but it’s in development now! If you’re running Volar Sport Racing calipers, REV Rides can special order a front adapter for you. Just reach out and we’ll get you squared away.
💡 Why Choose the Hawk 31 Max?
- More tire clearance & stability thanks to the 16mm-wider clamp spacing
- More tuning options with multi-stage damping and spring preload control
- More strength with forged AL6061 & AL7075 construction
- More bottom-out protection for big landings and technical terrain
- More confidence in every ride
